Pops goes on tour.

Ordering the Granby

Just a Granby, but this one has a cassette toilet, the slide-out tank of which is accessible through the rear wall. (That white frame.)

Just a Granby, but this one has a cassette toilet, the slide-out tank of which is accessible through the rear wall. (That white frame.)

The Grandby model from Four Wheel Campers is a specialty rough-terrain, compact pop-up truck camper. It is designed and built specifically for outdoorsmen (and women) who want to be able to camp in places that are not safely accessible to other types of vehicle-based RVs.

The Four Wheel build floor. The four rectangles in the black sidewalls are access holes for tie-down points to the truck bed. Perhaps someday they may progress to three in order to remove a lot of the effects of bed twist on the camper frame, but that is much, much more easily said than done: a complete redesign with lots of problems to solve. Worth it? Not really.

The Four Wheel build floor. The four rectangles in the black sidewalls are access holes for tie-down points to the truck bed. Like all 4-point mounts, this system promotes frame twist when the truck bed flexes, but the frame is durable enough for the 99% of customers that use it, and the mounts are pretty close together to decrease the movement. 3-point mounts are popular in Europe, but I’m not sure that the bottom-up redesign needed would be worth it in actual practice.

This post outlines the options I chose and some of the planned modifications to make the Grandby better suited to become a more workable habitat for an indoor-oriented oldster. Sometimes, plans benefit from change once you start working with a rig, and the Grandby will likely be no exception.

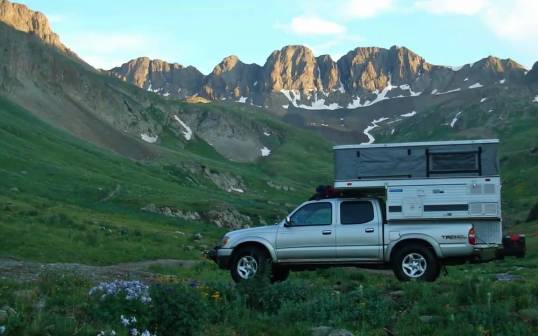

Nice camp. Some owners do this bed overhang thing. Gives me the willies, personally. Get into an emergency lane change at 70, and you'd better hope your suspension mods and shock absorber status are exceedingly hearty.

Nice camp. Some owners do this bed overhang thing, which is usually okay. On this Tacoma TuRD (rhymes with Furd) Toyota decided to trade bed load capacity and loaded handling (safety) for a smaller turning radius and a cheaper way to extend the cab. The camper overhang here exaggerates the problem. The potential for interesting activities on slick pavement gives me the willies, personally. Get into an emergency lane change at 70 dry, and you’d better hope your suspension mods and shock absorber status are exceedingly hearty.

Firstly, buying a Four Wheel camper is a bigger deal than it should be. Considering that Four Wheel serves a tiny niche market, finding used examples poses two difficulties. The first is that my own needs are model and floorplan-specific. Any model other than an 8-foot Grandby with a front dinette floor-plan will compromise usability – for me. Same for not carrying options that I need, or boosting the cost by being option-heavy. Being outdoors-oriented campers at heart, most customers opt for the minimalist approach, which doesn’t do me much good. Grandbys in particular are relatively scarce. The second difficulty is that, for a tiny niche market, used Four Wheel examples are in comparatively high demand, which boosts prices on the used market. The same proclivities for durability and construction quality that inspire a healthy brand loyalty among users also carries over into the used market. That, and the blessings of economic inflation mean that the annual drops in price for them year for year are much less than for pop-up truck campers in general. Buy a real oldie in great shape, and it’s quite possible that you’ll pay more for it than the guy who bought it new did. The above, plus the practical limitations that I have in locating, restoring and modifying a suitable unit within a very tight time frame in the field prompted me to bite the bullet and do serious damage to my savings account. Ow.

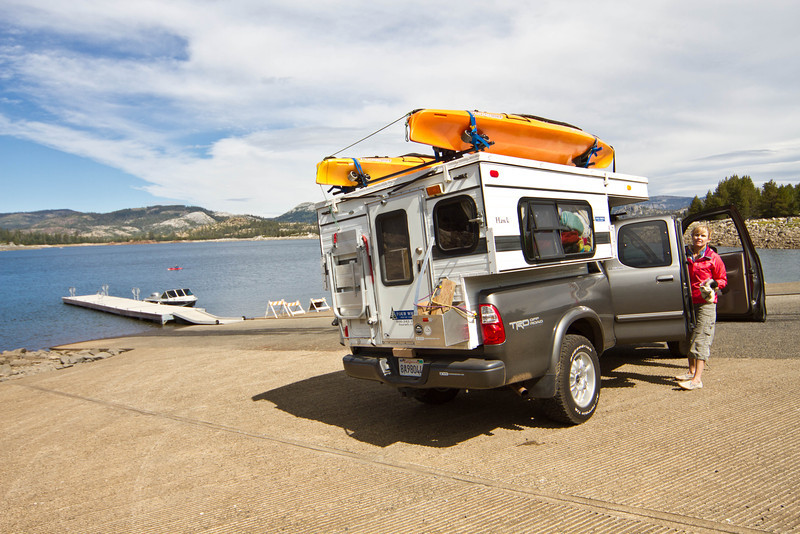

This is fairly common, too. A great way to bring along your "adventure gear", but whatever you put on top, you lift when you want to set up camp. Depending on the load, some people use portable jacks inside, and some unload the roof before raising it. The Granby roof is 12' long and supported only at the front and back edges. Get stupid with how added weight is placed and supported, and you can warp the roof.

This is fairly common, too. It’s a great way to bring along your “adventure gear”, but note that whatever you put on top, you lift when you want to set up camp. Depending on the load, some people use portable jacks inside, and most unload the roof before raising it. The Grandby roof is 12′ long and supported only at the front and back edges. Get stupid with how added weight is placed and supported, and you can warp the roof. Shorter roofs (like this one) are stiffer.

On a dollar per square foot basis, truck campers are not a great deal at all. For their size, they are expensive. If all you want is living space, there are much better choices to be had. Four Wheel’s models, aside from their stripped shell models, are particular offenders in this regard. You have to need their toughness, durability, small weight and profile to do what you want to do, or the value just isn’t there. If you do need it, there are few other options to be had without spending even more money. That’s what a niche is all about.

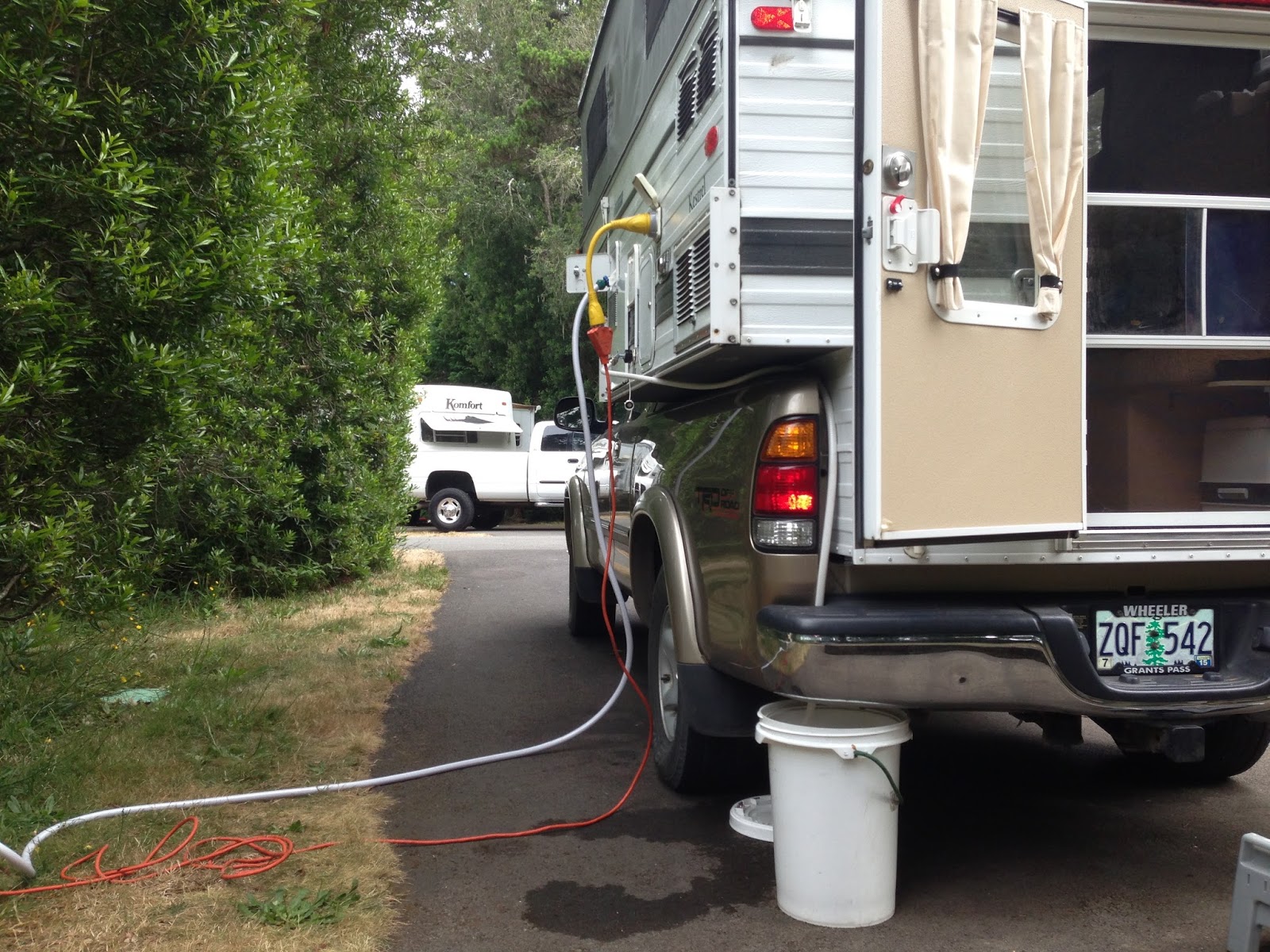

In a regular RV park with hookups, you can the Four Wheel's freshwater inlet and shore power socket. The white hose at the rear is connected to the greywater outlet, and here leads to a bucket, as used in the field. A longer hose would allow for a sewer connection.

In a regular RV park with hookups, you can use the Four Wheel’s freshwater inlet and shore power socket. The white hose at the rear is connected to the greywater outlet, and here leads to a bucket, as used in the field. A longer hose would allow for a sewer connection, but now you have two waste hoses to store instead of one.

Since they are a tiny niche, Four Wheel campers are made to order. Therefore, they are sold at list price. Although they have a dealer network, their dealers do not stock up on them, since their buyers do not tend to load up on option packages as other markets do. Some want skinned-to-the-bone models, some want middle-of-the-road, and others load up. Between the various bed sizes, floor-plans and options, it’s a more difficult market to try to inventory for, and they can’t afford to try. It is possible to find a floor model or show ex-demo for sale here and there, and the odd last year’s model crops up every now and then, but you have to be flexible in what you want and, most likely, be willing to drive very long distances to get it.

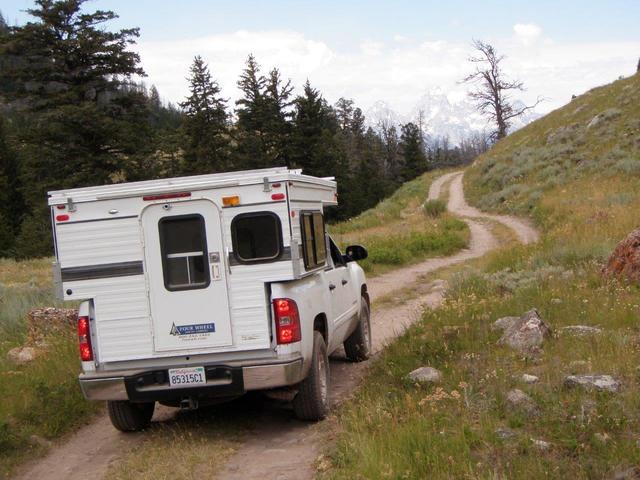

Nearly ANY truck camper can take this trail. The issue here is your confidence level toward whatever it does on the other side of that hill. On a trail, what's past is not a reliable indicator of what's ahead.

Nearly ANY truck camper can take this trail. The issue here is your confidence level toward whatever the trail does on the other side of that hill. On a trail, what’s past is not a reliable indicator of what’s ahead.

That leaves ordering a camper to be built, either from the factory in California or via a dealer locally. Except for any delivery charges to a dealer, the costs are the same. Depending on the time of year, the build lead time varies from 8 to 22 weeks. I happened to order toward the very bottom of the slope, right where 12-13 weeks finished dropping to 8-9 weeks – which is almost a problem. That gives me very little time to clear the Ford’s bed of the Tankmin, seal off its bed holes, and sell the Ford’s step-up tailgate, which is actually worth real money these days. I also need to end my association with the macerator and at least three of the four big solar panels. I’d been counting on 12-13 weeks delivery! Much to do, and not much time to do it.

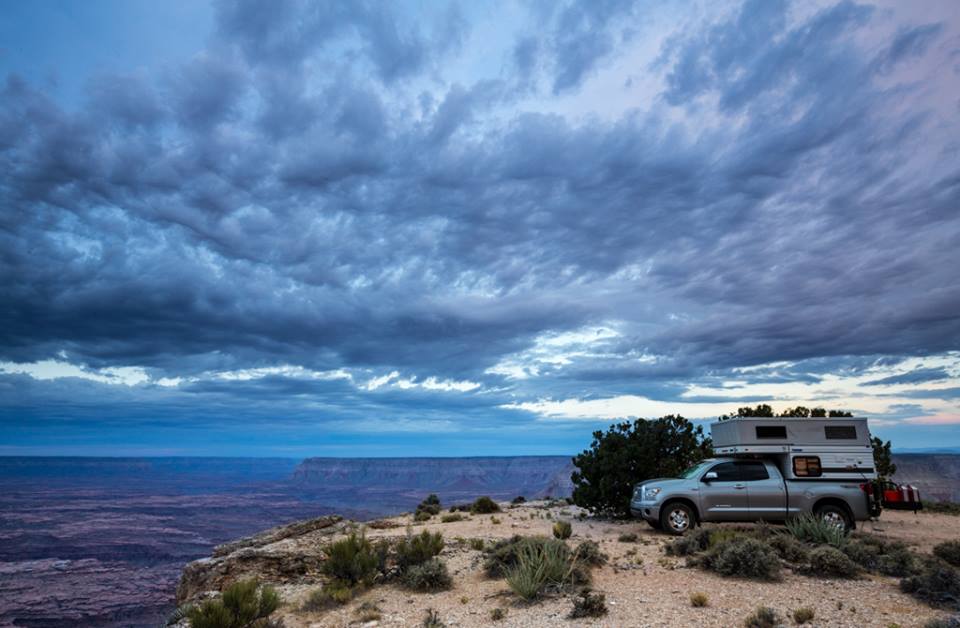

At end of day on a seldom-used trail, just pull off and make camp. No need to hunt for an accessible, usable spot.

At end of day on a seldom-used trail, just pull off and make camp. No need to hunt for an accessible, usable spot. In the morning, move on.

At any rate, here are the specs. The Grandby already includes a 20-gallon freshwater tank (same as the Defiant), sink, electric on-demand water pump, a 12V outlet, outside-vented propane tank compartment, solar wiring from roof to battery compartment, a 30A shore power system, and various interior furnishings. The standard build assumes that you will operate devices off your vehicle starting battery, and that any solar system will replenish same. This is plenty good enough for minimalist camping. The options I chose are:

  • Front dinette floor plan
  • Forced-air propane furnace with digital thermostat. (Once I cross over about 7,000 feet elevation, my Mr. Heater catalytic portable has problems firing and staying lit, which has proven a concern after some 35-degree nights at higher elevations.)
  • 65-liter 12VDC/120VAC compressor fridge/freezer. (No more obsessing about level campsites.)

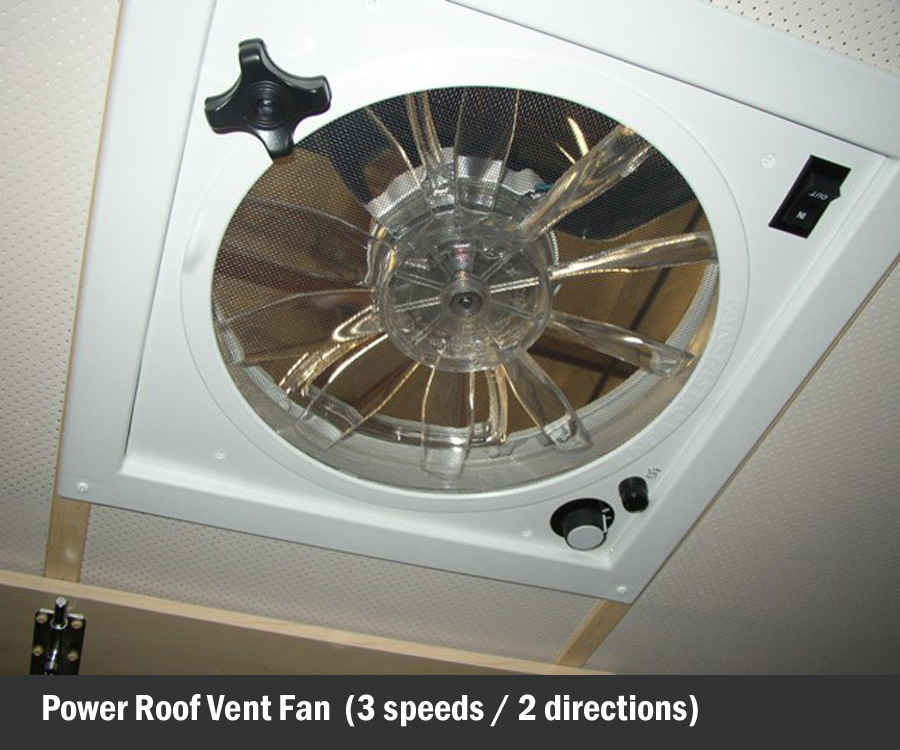

  • Fan-Tastic power roof vent fan. (Ventilation can be an issue when that flexible wall section starts radiating summer sun heat.)
  • Second roof vent. (Ditto.)
  • Battery prep. (Wiring and battery separator. Keeps me from blowing out the Ford’s starting batteries by being naughty with the solar power system.)
  • Thermal Pack. (A removable poly liner inside the flexible wall section that creates a dead air space to improve insulation somewhat.)
  • External gas strut roof lift assists. (Not as young as I used to be, eh sonny?)
  • Camper jack mounting plates. (In case the camper must ever be removed from the truck bed, God forbid. I’d have to add the jacks themselves, but not now. May also prove useful as device mounting points during modding.)

You may notice that I ordered no toilet, propane water heater, outside shower, or inside shower. On the face of it, this is not a flattering indicator of my personal habits, since all of these options are available. These items posed issues with the use of interior space, and/or exceeded my available resources. That, plus the lack of waste holding tanks and storage space got me to brainstorming about workarounds. What’s a lazy suburbanite to do? Fake it.

Front Dinette. A nice-sized table, benches with decent storage underneath each. Like other floorplans, the dinette converts to a low bed if all you want to do is sleep without having to raise the roof - assuming you haven't clogged up this area!

Front Dinette. A nice-sized table, benches with decent storage underneath each. Like other floorplans, the dinette converts to a low bed if all you want to do is sleep without having to raise the roof – assuming you haven’t clogged up this area!

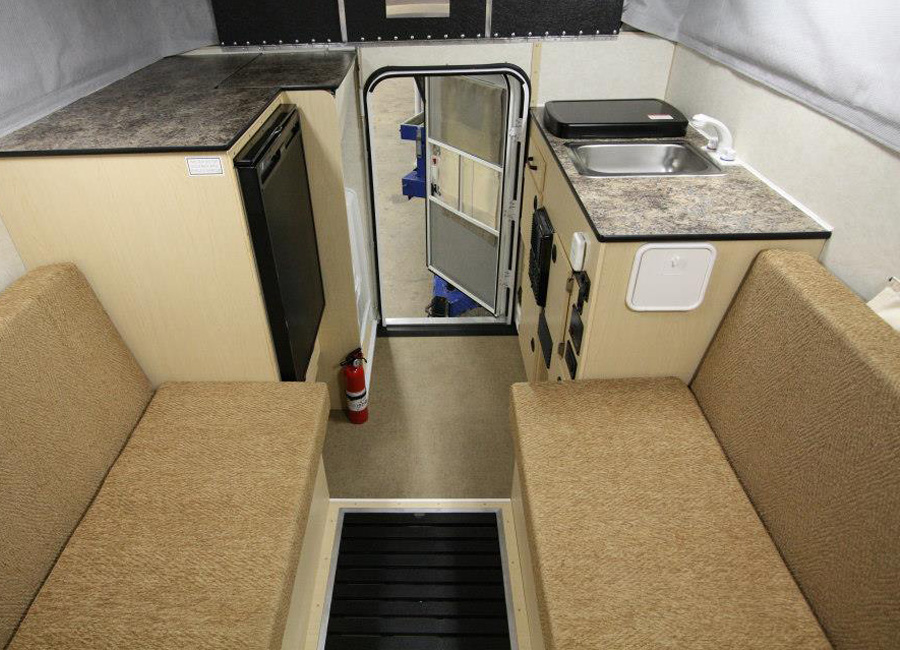

As shot from the bed area. This one has a max-sized fridge in trade for a storage tray above it, and a cassette toilet at left rear, in trade for less cabinet storage.

As shot from the bed area. This one has a max-sized fridge in trade for a storage tray above it, and a cassette toilet at left rear, in trade for less cabinet storage.

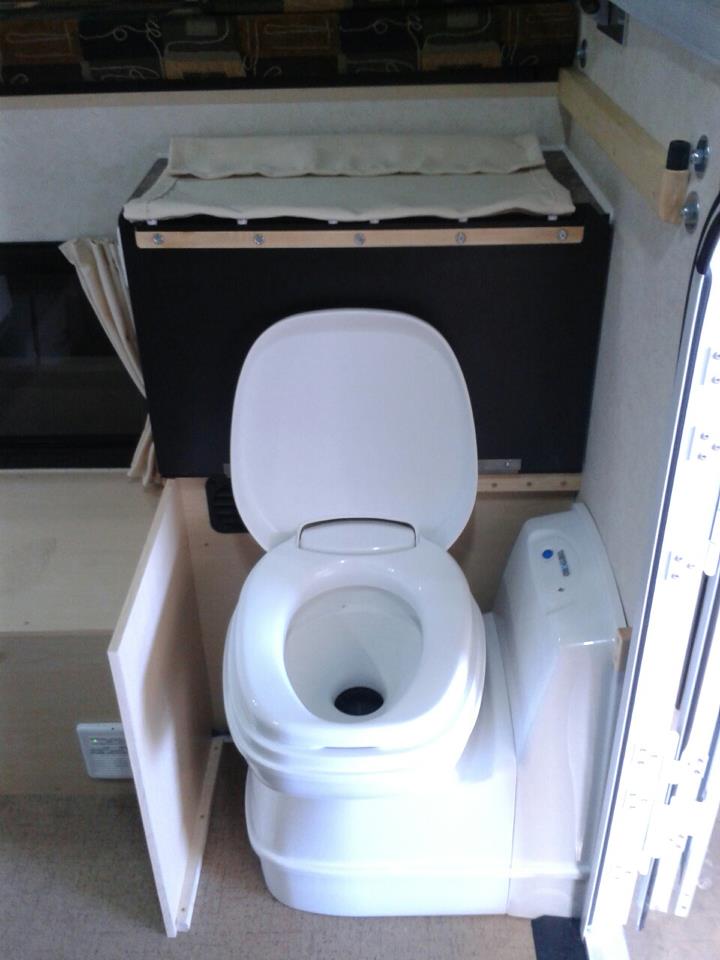

Come on, I know y'all just love toilets, so here's what the cassette toilet option looks like. The bowl rotates at its base for getting it of the aisle, and is then shrouded over when not in use. Some people may wish to also close the entry door!

Come on, I know y’all just love toilets, so here’s what the cassette toilet option looks like. The bowl rotates at its base for getting it completely out of the aisle, and is then shrouded over when not in use. Some people may wish to also close the camper entry door!

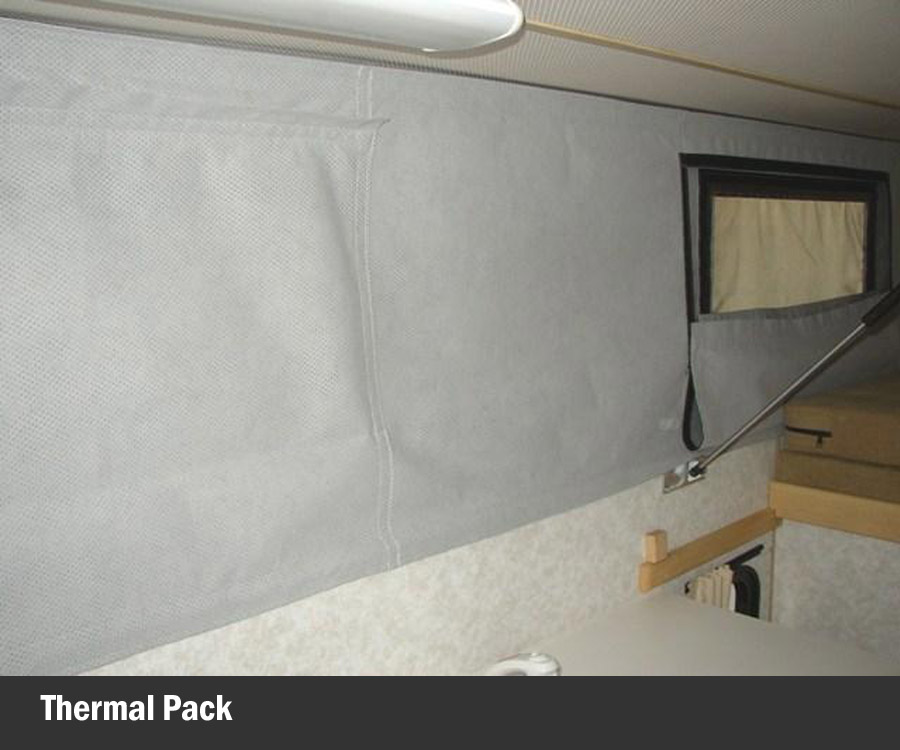

Umm, yes. The so-called thermal pack. Liberated this from Four Wheel.

Umm, yes. The so-called thermal pack. It’s held on with Velcro. Liberated this from Four Wheel, too.

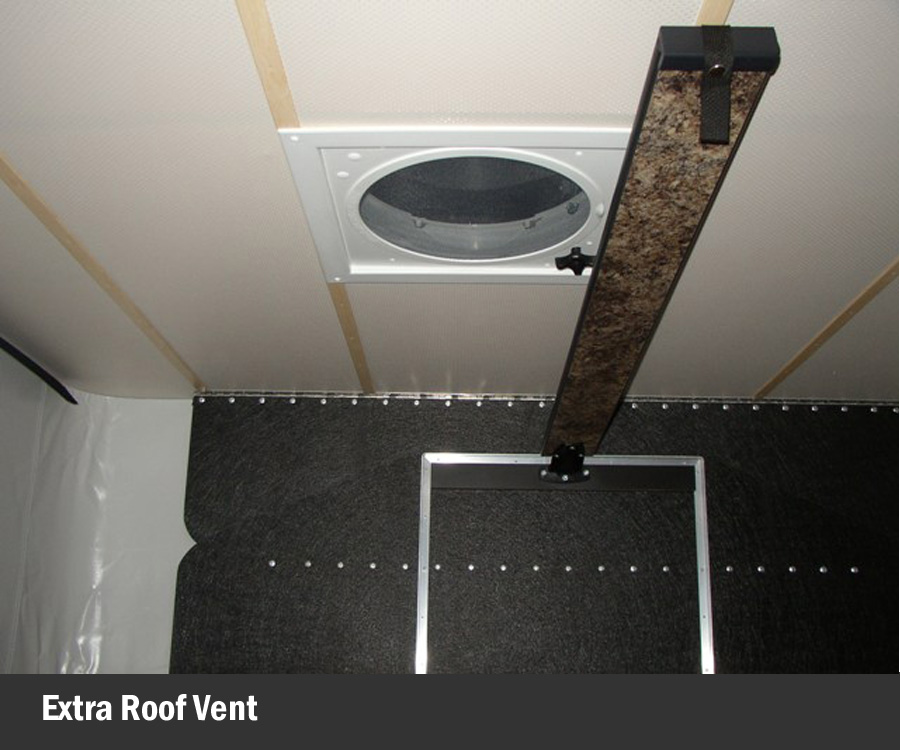

These help when you want ventilation without having to play with the sidewall fabric windows.

These help when you want aggressive ventilation without having to play with the sidewall fabric windows.

and if the Fan-Tastic is workin', this provides an air source for it over the bed.

And if the Fan-Tastic is workin’, this provides an air source for it over the bed.

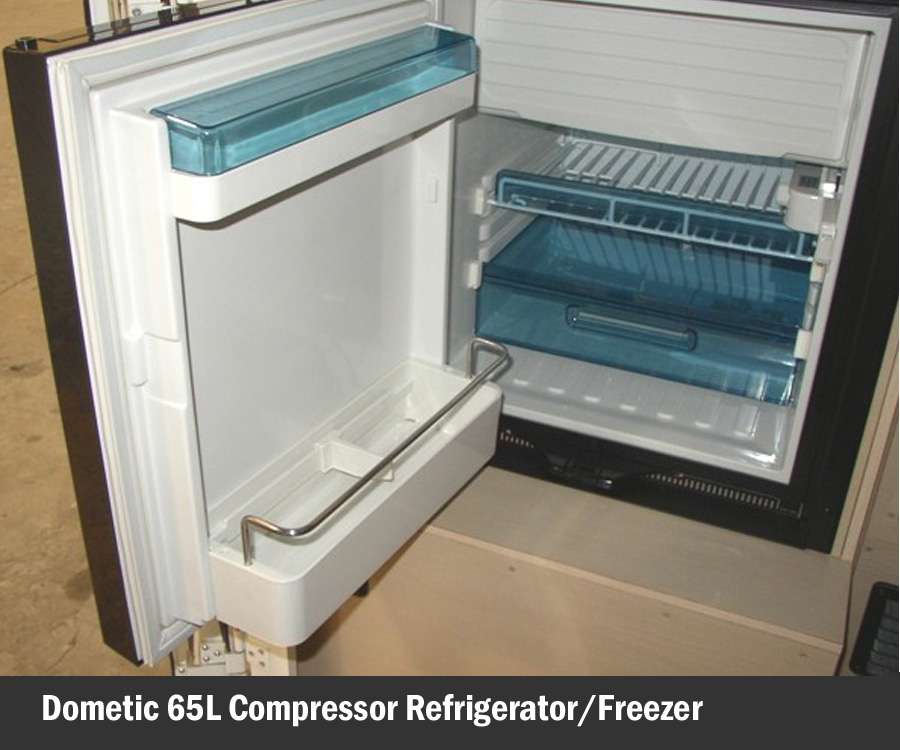

Nope, not expansive, but it will have to do. Icebox section for chilling margarita glasses is that white cover on top.

Nope, not expansive, but it will have to do. It has the essentials: the icebox section for chilling margarita glasses is behind that white cover on top.

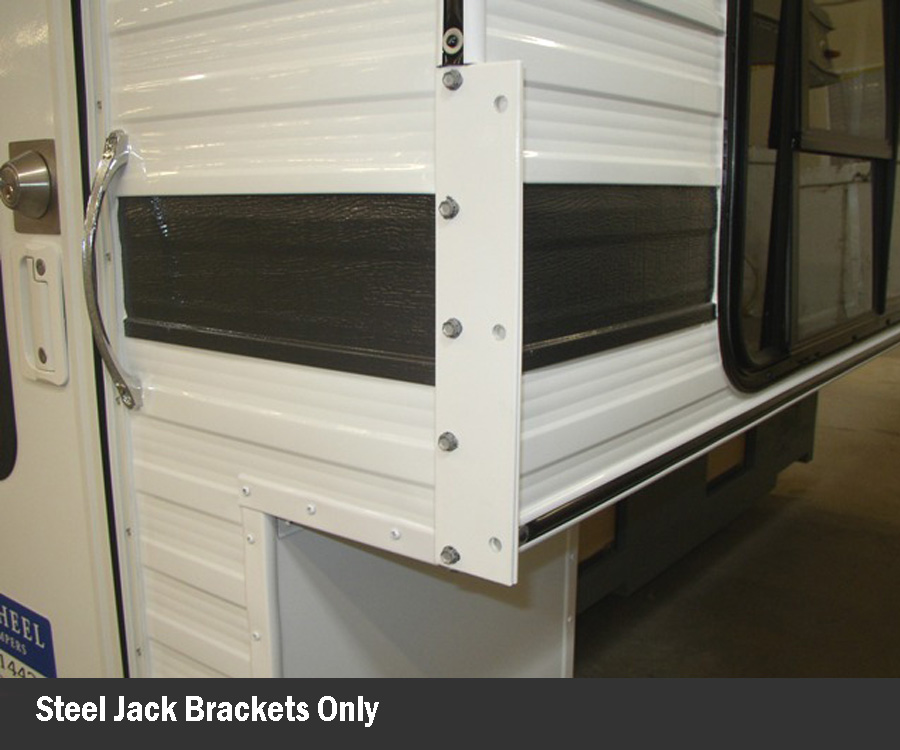

Technically needed only for camper de-installation, this looks like one of four creative opportunities to me.

Technically needed only for camper de-installation, this looks like one of four creative opportunities to me. What would YOU hang from them or mount to them?

The grandest spots are seldom seen, for a reason.

The grandest spots are seldom seen, for a reason.
